BendPak Mobi-EVS EV4000SL EV Battery and Powertrain Lift Table

Evolving for EVs

March 7, 2023
With the prominence of EVs on the rise, lift manufacturers have been modifying and creating new shop equipment to meet the industry’s needs.

The auto landscape is changing – more and more EVs are entering the scene, and that means shops need to take a look at their equipment and see if it’s still meeting the needs of all their customers’ vehicles. Lifts and lift tables are essential equipment for every shop, but is it really necessary to upgrade this expensive equipment just to accommodate EVs?

To upgrade or not to upgrade?

Whether your shop should or shouldn’t upgrade depends on this one very important question – what are you using the equipment for? If you’ve set up your shop in a small town in a rural state chances are you’re not seeing many, if any, electric vehicles. However, if your shop is in a bustling city in California, EVs may be a more common occurrence.

Although, even if your shop does see some electric vehicles, upgrading your equipment still may not be necessary if you choose to outsource the work.

But, if you’re looking to expand your shop’s repertoire, then you’ll need to ask yourself the next most important question – what’s the wheelbase on your vehicles?

Carl Boyer, Midwest regional sales manager for Stertil-Koni, says, “We're always kind of surprised that the customer hasn't considered things like, ‘What's the wheelbase of my vehicles? What do they weigh?’ Typically, they want to maximize their lift to get the widest variety of vehicles on the lift.”

To find the right lift to suit their customer’s needs, Boyer notes, they want to know the customer’s shortest and longest wheelbase vehicles. From there, they also take a look at what work the shop will be doing on the lift – oil changes, quick maintenance, etc. – as that also factors into the decision of what style of lift the shop will need. However, Boyer cautions that not every lift manufacturer will have what’s best for your shop’s needs. Each company can only speak to the styles of lifts they manufacture, so it is in your best interest to do the proper research before settling on which lift to purchase.

Lift modifications

Though the job of a vehicle lift remains the same whether it’s lifting an electric vehicle or a vehicle with an internal combustion engine (ICE), the equipment needed to lift each type of vehicle varies quite a bit. When it comes to electric vehicles, they are much heavier than the average car. With the battery alone weighing around 1,000 lbs, EV lifts must have an increased lifting capacity. Aside from the weight of the battery, its location has also created a need for lift modifications.

“The lift market is expanding to meet unique EV needs,” says Brian Spikes, vice president and general manager at Challenger Lifts. “OEs have made lifting points more specific to accommodate delicate wiring and EV battery locations.”

It’s important the lift can hit those specific points otherwise the equipment could cause interference with the vehicle’s battery, notes Jason Matthews, product manager, automotive lifts for Rotary Lift. This interference could lead to vehicle damage or an inability to do the required repairs.

Lift manufacturers trying to stay ahead of the curve are working on modifying their lifts and lift accessories to cater to the electric vehicle market. Here are four EV lift manufacturers creating products to help shops prepare for the future of the industry.

Stertil-Koni

With EVs becoming more and more prevalent in the market, many lift manufacturers, such as Stertil-Koni, are looking at the equipment they currently offer and trying to find ways to adapt it, so it not only works with electric vehicles but also the legacy vehicles on the road and the vehicles being transitioned from internal combustion to electric.

Just as important as the EV lift itself are the EV lift tables used for lowering the battery from the vehicle. Getting the vehicle off the ground is just step one – shops need additional EV lift accessories to finish the job, such as Stertil-Koni’s SKTJ Hydraulic Transmission Jack.

“What we have right now is actually a transmission jack, that's on swivels, and it has its own hydraulic piston that would come up to meet the batteries, and then lower [them] down safely,” says Tim Kerr, engineering sales support manager for Stertil-Koni. “So that's currently what we're trying to work on and expand the capabilities [of].”

Kerr notes that they are looking to potentially add a large battery table to the jack, and with the equipment’s 3,500 lb capacity, it would be able to handle lifting and lowering any EV battery.

Challenger Lifts

Recently introduced at SEMA 2022, Spikes says, “[Challenger Lift’s Medium Duty 5K Mobile Columns] will allow shops with limited space to have the flexibility of a mobile column system in a more compact form and at lower price point.”

As a set four, the wireless mobile columns are able to lift 20,000 lbs and can lift vehicles from the wheels. This gives technicians total undercarriage access on both electric and larger vehicles.

Challenger also offers two EV lift tables – the BT3000 and the BT3300. Though both lift tables can be used to install and remove EV batteries, battery packs, transmissions, etc., the BT3000 offers a higher maximum height at 79.5” and has a rechargeable battery. On the other hand, the BT3300 can be easily maneuvered with its pallet-jack-style handle and extending, adjusting, and tilting top plate.

Rotary Lift

One of Rotary Lift’s newer lifts, the Wide SmartLift, allows better accessibility to EV batteries. Though Matthews notes that their lifts have always had clearance, he says “the difference between that and our standard smart lift is that the plungers are further away from each other. And that provides the clearance needed to be able to remove electric batteries.

He explains that previously if a shop had an in-ground lift, the way they were constructed typically would have interfered with the electric battery.

To complement the Wide SmartLift, Rotary Lift has the LT33A Air-Hydraulic Lift Table. The table can shift in sections with the lift platform extending an additional 8”, which eliminates the need to move the entire table when multi-positioning larger loads. Additionally, the tabletop can shift side to side by an inch and can tilt up to 1 degree. The variety of adjustments helps technicians easily line up vehicle components during installations. Rotary’s lift table also features foot pedal controls.

Bendpak

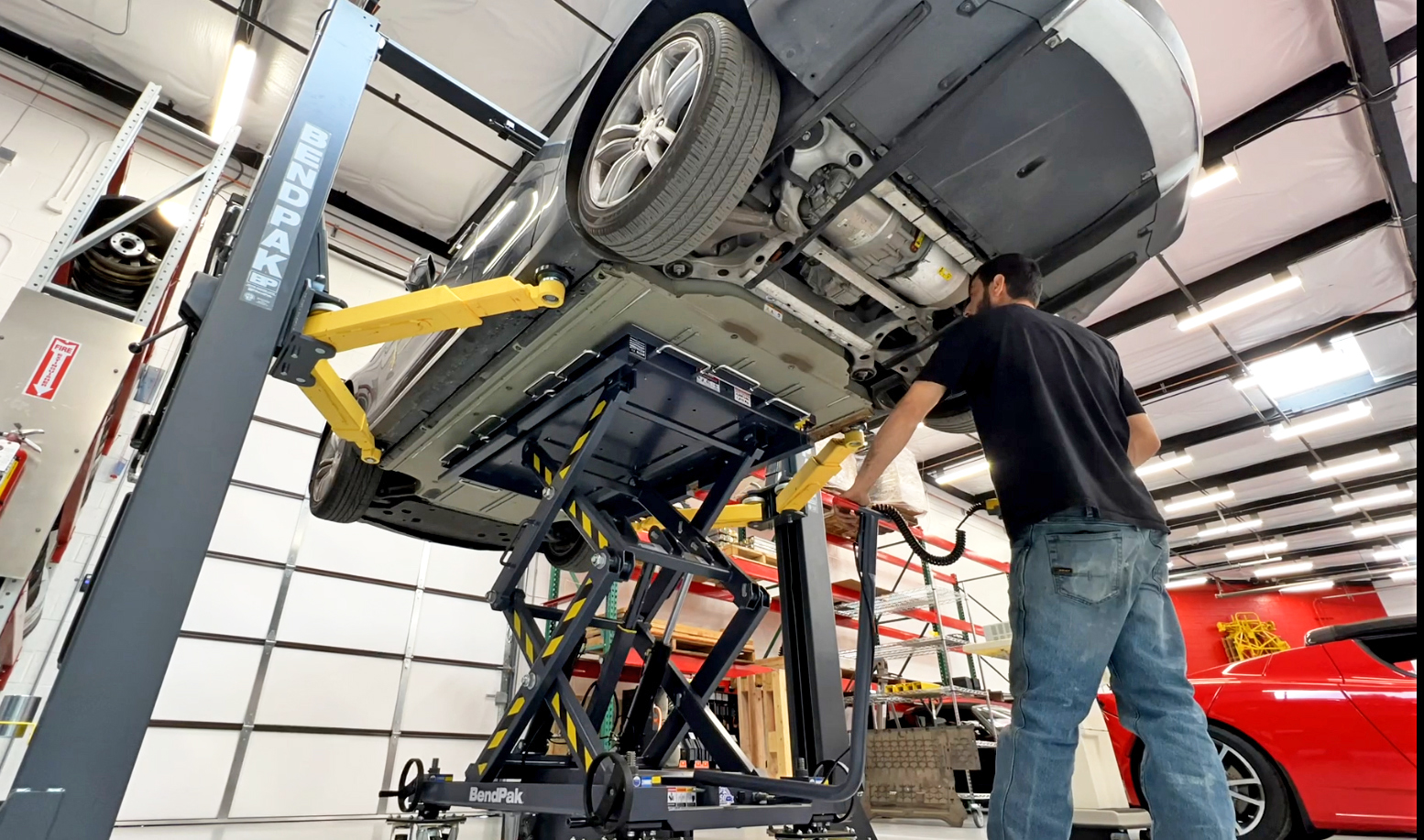

Announced at the 2023 NADA Expo, the Bendpak Mobi-EVS EV battery and powertrain lifting system family includes the upgraded EV2400SL and the new EV4000SL.

“Mobi-EVS lift tables can handle high-voltage battery packs from a Tesla Model 3 to a Ford F-150 Lighting all the way up to a GMC Hummer EV1,” says Jeff Kritzer, president and CEO of Bendpak. “They protect technicians by eliminating manual lifting, lowering, and positioning of heavy battery packs and making it easy to ergonomically move them around the shop.”

Both models feature full-length utility trays on both sides for keeping fasteners and tools within reach, a stowable steering handle for more walkaround clearance, zero-throw tri-casters, and an integrated slip-plate deck that enables side-to-side shifting up to 1.5” along both axis for adjustability. The EV2400SL has a 2,400 lb capacity, while the EV4000SL has a 4,000 lb capacity and the capability to evaluate to more than 6’ in less than 20 seconds.
