Mack LR, TerraPro models available with HAULMAXX EX suspension

Aug. 11, 2022

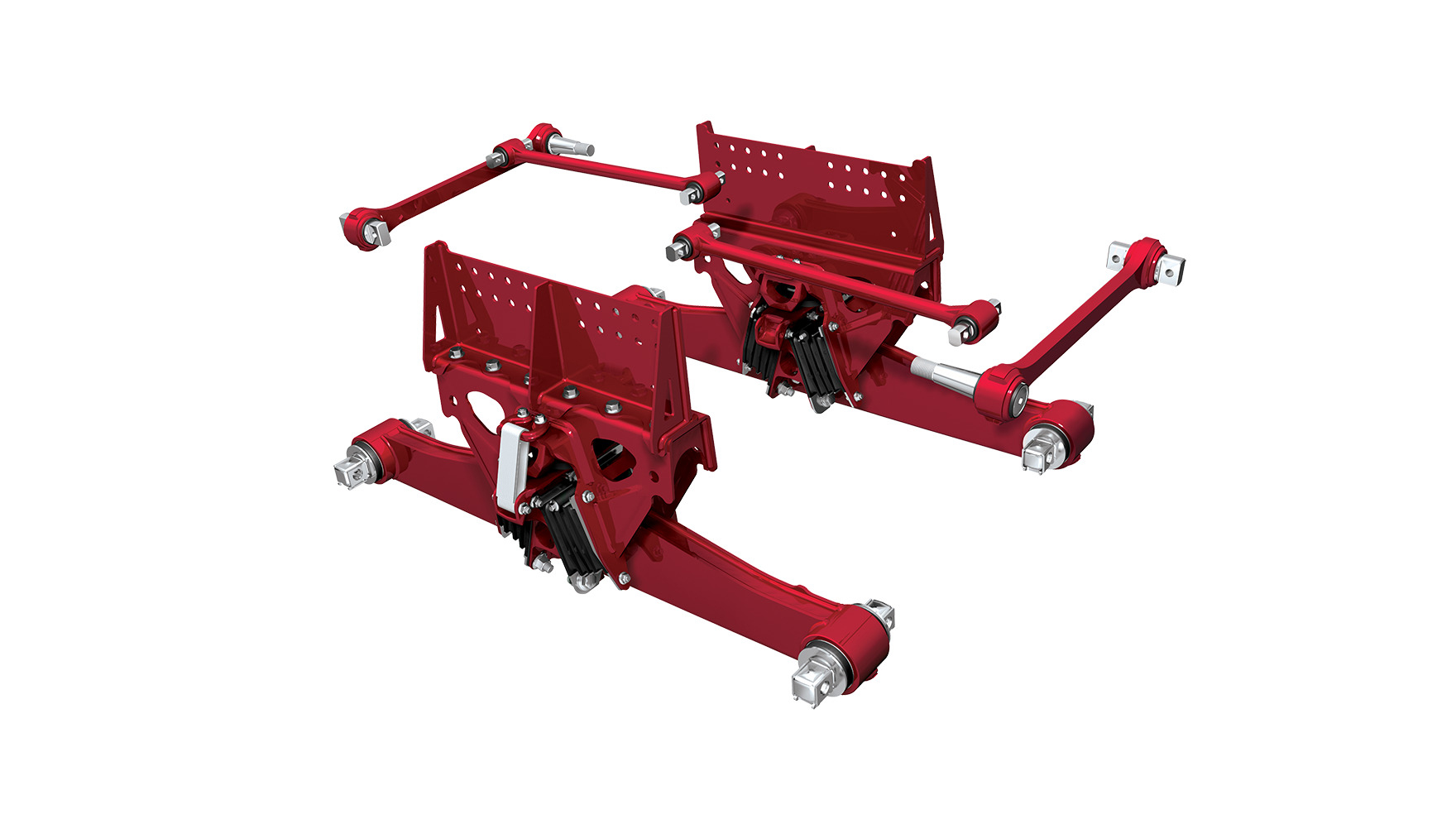

The HAULMAXX EX features a progressive load spring system that easily adjusts to the load for an enhanced combination of empty-ride quality and loaded stability.

Mack Trucks announced that the Mack LR and Mack TerraPro models are available to order with the optional Hendrickson HAULMAXX EX suspension system, improving capability, uptime, and total cost of ownership.

“The newly available HAULMAXX EX suspension on our cab-over models gives our customers more choice and offers increased capability offering capacities of 40,000 pounds, 46,000 pounds, and now 52,000 pounds, with up to a 75,000-pound site rating,” said Josh Seiferth, Mack Trucks cabover product manager. “The heavy-duty rubber suspension also increases durability and maximizes the life of the components for improved uptime and total cost of ownership for the customer.”

The HAULMAXX EX features a unique progressive load spring system that easily adjusts to the load for an enhanced combination of empty-ride quality and loaded stability. Angled bolster springs and unique progressive load springs provide exceptional stability for demanding applications.

The suspension design delivers an improved ride, reduced road shock, wheel hop, and vibrations to the vehicle for longer service life and fewer repairs. The design requires no lubrication, has fewer bushings to maintain, and features an integrated jounce stop that protects the rubber components from compression, ultimately reinforcing the vehicle’s durability.

Mack LR and TerraPro models equipped with the HAULMAXX EX suspension offer increased tire clearance and up to 17” of diagonal wheel articulation for excellent off-road mobility on the challenging terrain often encountered by vocational trucks. The tire clearance was improved on the HAULMAAX EX to include packages with 315 tires and 9” steel wheels, while continuing to meet the SAE standard for tire chain clearance.

The Mack LR model is designed to meet the challenges of refuse customers needing superior maneuverability, increased productivity, and improved visibility. The LR model comes standard with the Mack 11-liter MP7 engine, delivering up to 355 horsepower and 1,260 lb.-ft. of torque.

Mack’s rugged TerraPro model enables customers to pack maximum payload into a compact footprint. The TerraPro is available with the Mack MP7 and 13-liter Mack MP8 engine with up to 505 horsepower and 1,869 lb.-ft of torque, as well as the Mack mDRIVE automated manual transmission.

The HAULMAXX EX suspension replaces the HAULMAAX and HN suspensions previously available on these models.

Both the LR and TerraPro models are standard with Mack GuardDog Connect integrated telematics solution that proactively monitors the truck to help prevent unplanned downtime events.
